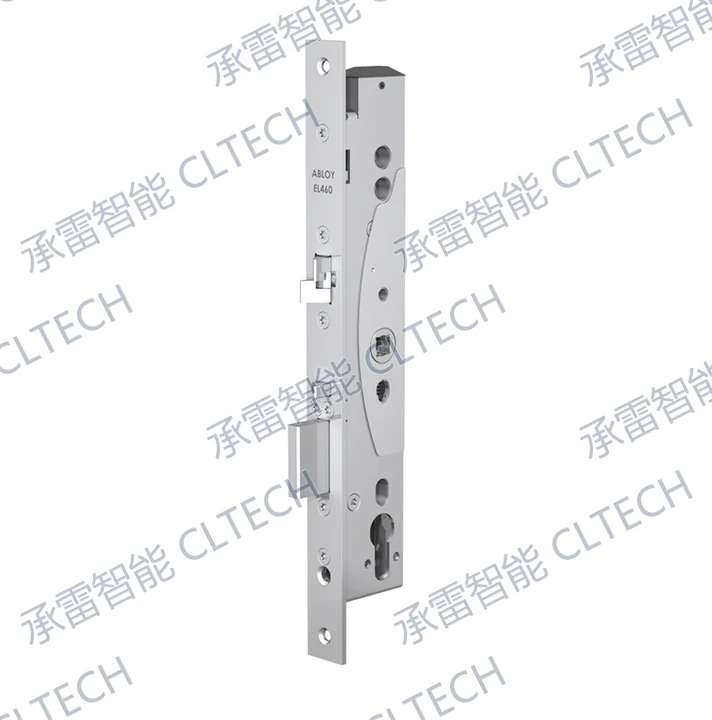

EL460 handle-controlled lock for narrow-profile doors
EL460 handle-controlled lock for narrow-profile doors
EL460 is a DIN-standard handle-controlled electric lock for narrow-profile doors. The outside handle is electrically engaged and the inside handle opens mechanically. Check the available profile space and preparation dimensions first.
- Door type
- Narrow-profile doors
- Control
- Electrically controlled outside handle; mechanical inside handle
- Power supply
- 12–24 VDC
- Power-failure mode
- Configurable fail-locked or fail-unlocked
- Deadbolt throw
- 20 mm
Where it fits
Suitable for medium-traffic controlled narrow-profile doors. It supports cylinder override, automatic locking on closing and monitoring contacts for system integration.
Selection limits
Not for door automatics. Similar functions do not make it interchangeable with EL560: verify backset, faceplate, cylinder centres and frame preparation.
How to choose
Select EL460 around narrow-profile dimensions; EL560 is intended for solid wooden and metal doors. Match the door construction before choosing control functions.
Request product documents
For data sheets, installation instructions or drawings, contact CLTECH with the model and required configuration.
