ABLOY PRODUCT

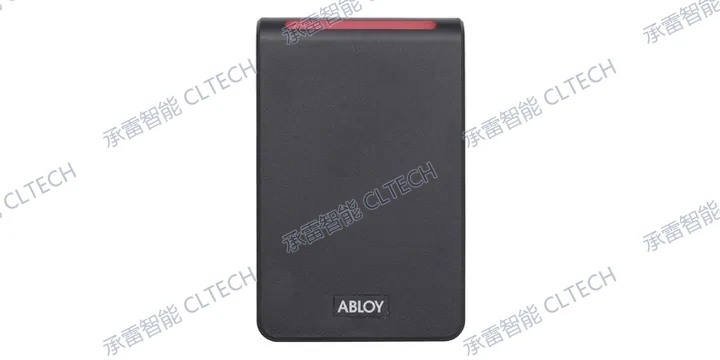

ASSA ABLOY Access Signo 40 Reader AMR200
AMR200
ASSA ABLOY Access Signo 40 Reader AMR200
AMR200 is an ASSA ABLOY Access Signo 40 wide reader supporting ABLOY PULSE keys and ASSA ABLOY Access Seos credentials over OSDP.
- Brand
- ABLOY
- Model
- AMR200
- Type of product
- Reader based identity and access security solution
Product features
- Dimensions (W × H × D): 80 × 121.5 × 19.5 mm; weight: 120 g.
- Supply: 12 V DC; current: 65–75 mA, peak 250 mA.
- Supports 13.56 MHz NFC Seos and an OSDP bus interface.
- Operating temperature: −35°C to +66°C; relative humidity: 0–95%, non-condensing.
- Installs on a flat surface; a separate mounting plate is recommended.
Before ordering
Identify the product’s role in the PULSE system, then check its mounting interface, keys and management arrangement. Do not substitute mechanical cylinders or CLIQ products based on appearance.
Other products in this category
Compare the listed fields; these links do not imply interchangeability.
Request product documents
For data sheets, installation instructions or drawings, contact CLTECH with the model and required configuration.
Contact CLTECH for documents
