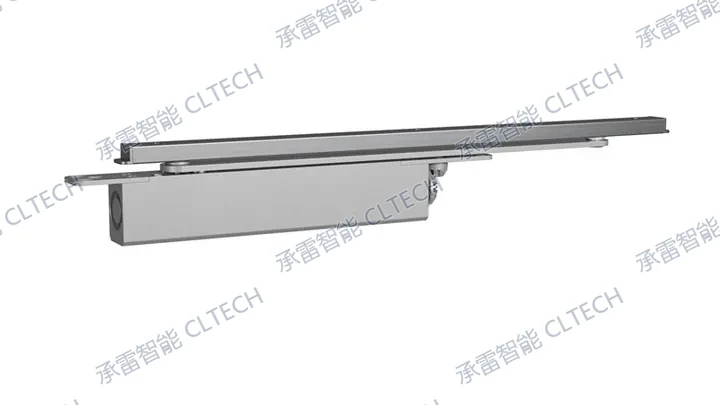

Concealed door closer DC850
Concealed door closer DC850
DC850 is a concealed Cam-Motion closer with a slim G896 or standard G897 concealed guide rail for single-action doors up to 1100 mm wide.
- Brand
- ABLOY
- Model
- DC850
- Type of product
- Concealed door closer
- Operating temperature
- -15°C to +40°C
- Min closing force
- EN2
- Max opening angle non-hinge side
- 120°
- Force adjustment
- Yes
- Hold open function
- No
- Installation type
- Concealed
- Max closing force
- EN4
- Mounting position
- Concealed in door, Concealed in frame
- Technology
- Cam Motion
- Max opening angle hinge side
- 120°
- Height adjustable spindle
- Yes
Product features
- Adjustable closing force EN2–EN4.
- Can be concealed in the door or frame; maximum opening angle 120°.
- Operating temperature −15 to +40°C; no hold-open function.
Before ordering
Confirm door width, weight, handing and mounting space, and whether hold-open, coordinated closing or electrical release is required. Check the closer, rail, arm and mounting plate as a complete combination.
Please contact us to confirm the minimum applicable door thickness.
Fire or explosion-protection suitability requires verification against the current model, configuration and certificate scope; this page makes no blanket certification claim.
